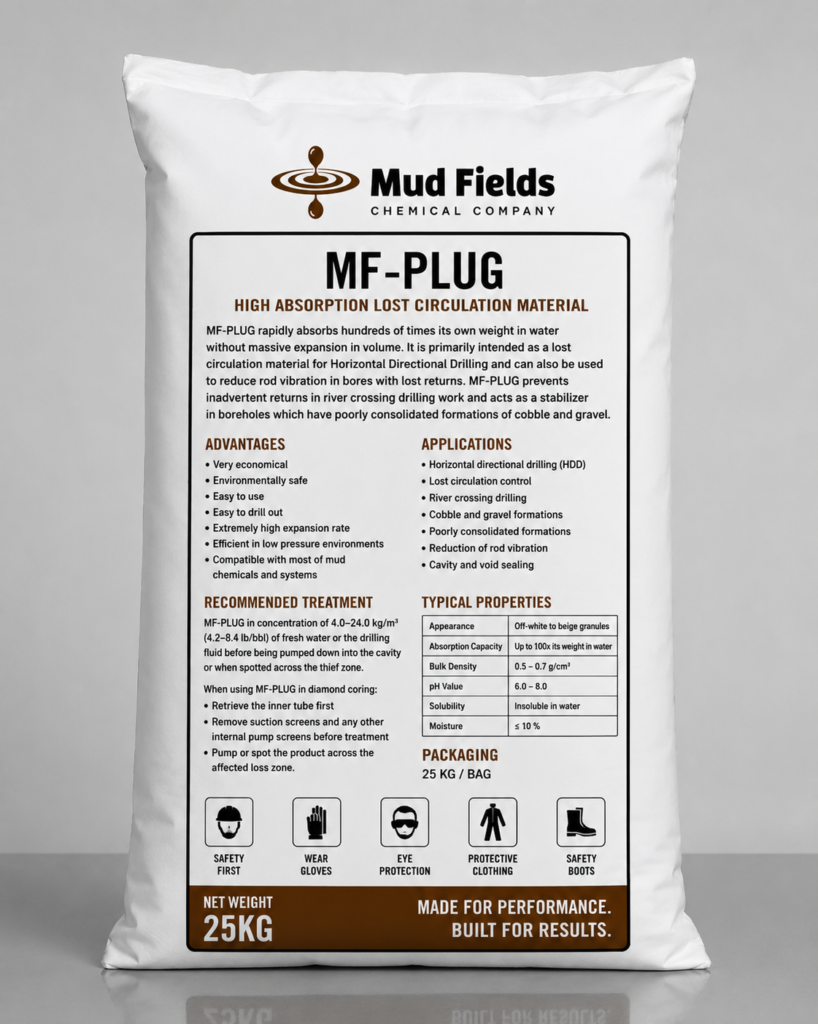

MF-Plug
MF-Plug is a highly absorbent lost circulation material designed to rapidly take up large amounts of water while maintaining controlled volume expansion.
It is primarily used in horizontal directional drilling to reduce fluid losses, control inadvertent returns and improve borehole stability in poorly consolidated formations such as gravel and cobble.
MF-Plug can also help reduce drill rod vibration in boreholes with partial or complete lost returns.
Advantages
- Highly economical
- Environmentally safe
- Easy to apply
- Easy to drill out
- High absorption and expansion capacity
- Effective in low-pressure formations
- Compatible with most drilling fluid systems
- Helps control inadvertent returns
- Supports borehole stability
Applications
MF-Plug is recommended for:
- Horizontal directional drilling
- Lost circulation control
- River-crossing projects
- Gravel and cobble formations
- Poorly consolidated boreholes
- Reduction of drill rod vibration
- Sealing cavities and thief zones
Recommended Treatment
Mix MF-Plug with fresh water or drilling fluid before pumping it into the cavity or spotting it across the thief zone.
Typical treatment concentration:
4.0–24.0 kg/m³
1.4–8.4 lb/bbl
Перед публикацией я бы проверила исходную цифру: в присланном тексте указано “0 to 24.0 kg/m³ (4.2 to 8.4 lb/bbl)”, но эти два диапазона не полностью соответствуют друг другу. Вероятно, первая цифра должна быть выше нуля.
When using MF-Plug in diamond coring:
- Retrieve the inner tube first.
- Remove suction screens and other internal pump screens before treatment.
- Pump or spot the product across the affected loss zone.
Packaging
25 kg / bag
